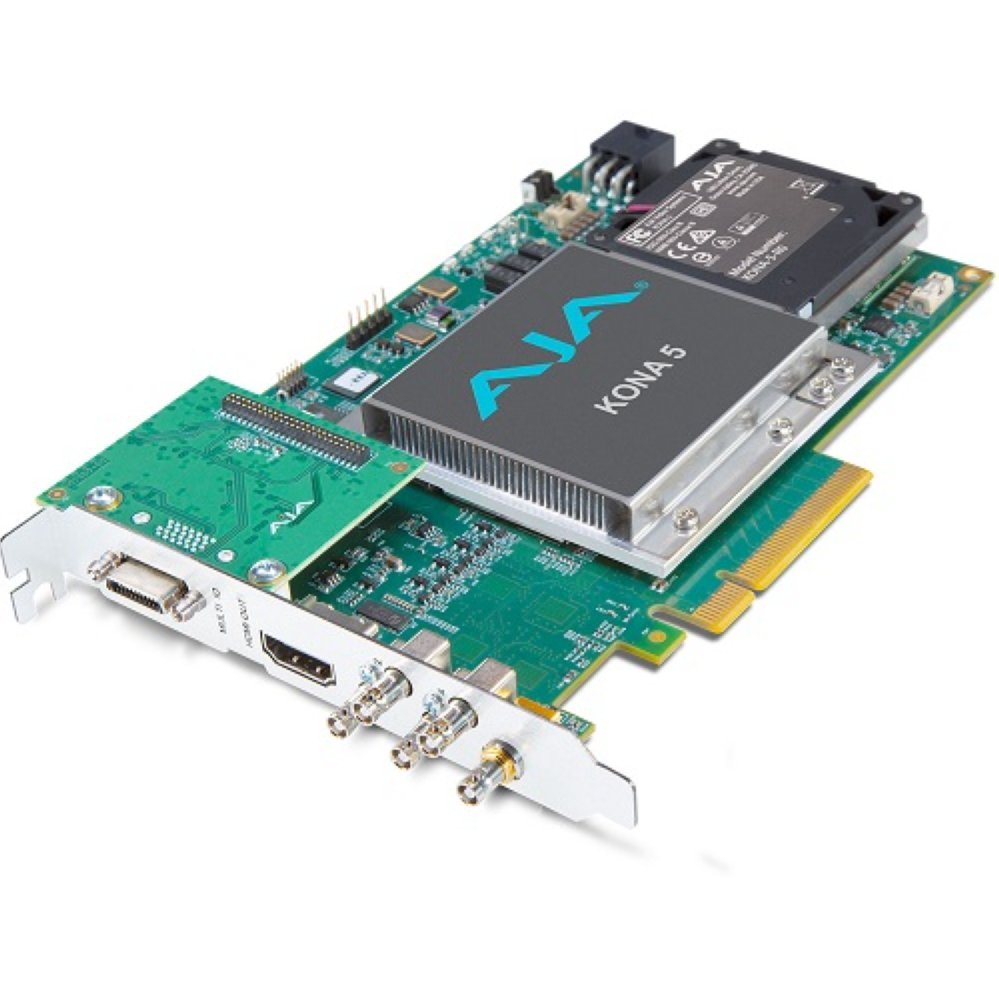

Карта видеозахвата AJA KONA 5

KONA 5 - это невероятно быстрая 8-канальная карта ввода-вывода PCIe 3.0 от AJA. Двунаправленные порты 12G-SDI обеспечивают многоканальный захват и воспроизведение, поддерживая 10-битные 4: 2: 2 и 4: 4: 4 или даже 12-битное цветовое пространство. Для рабочих процессов HDR KONA 5 поддерживает HDR10 и HLG.

Видео форматы……….....(8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
                                           (UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
                                           (4K) 4096 x 2160p 23,98, 24, 25, 29,97, 30, 47,95, 48, 50, 59,94, 60
                                           (UltraHD) 3840 x 2160p 23,98, 24, 25, 29,97, 30, 50, 59,94, 60
                                           (2K) 2048 x 1080p 23,98, 24, 25, 29,97, 30, 50, 59,94, 60
                                           (2K) 2048 x 1080PsF 23,98, 24, 25
                                           (HD) 1080i 50, 59,94, 60
                                           (HD) 1080PsF 23,98, 24, 25, 29,97, 30
                                           (HD) 1080p 23,98, 24, 25, 29,97, 30, 50, 59,94, 60
                                           (HD) 720p 50, 59,94, 60
                                           (SD) 625i 50
                                           (SD) 525i 59,94

Видео вход/выход…….....2G-SDI, SMPTE-2082, 12-bit*, 10-bit and 8-bit
                                           6G-SDI, SMPTE-2081, 10-bit and 8-bit
                                           3G-SDI, SMPTE-259/292/296/424/425, 8-битный, 10-битный и 12-битный *
                                           4K/UltraHD 4:4:4 (4x BNC)
                                           1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit*, 10-bit and 8-bit
                                           1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit

Аудио вход/выход…….....16-канальный 24-битный SDI, 48 кГц, синхронный
                                            8-channel, 24 and 16-bit HDMI embedded audio, 48 kHz sample rate, synchronous
                                            8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

Genlock……………    ........Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) (via 1x HD-BNC at PCIe bracket)
