Хранилище JBOD AIC J4060-01

Код товара: 74726
Артикул: SSG-JBSA31S-4603T-E0RP-A
Под заказ https://schema.org/BackOrder
271269 грн.
Доставка
  • Самовывоз по адресу Нагорная 27Б
  • Доставка курьером по Киеву
  • «Новой Почтой» по Украине
Оплата
  • Оплата на сайте
  • Оплата наличными в офисе или курьеру
  • Наложенный платеж

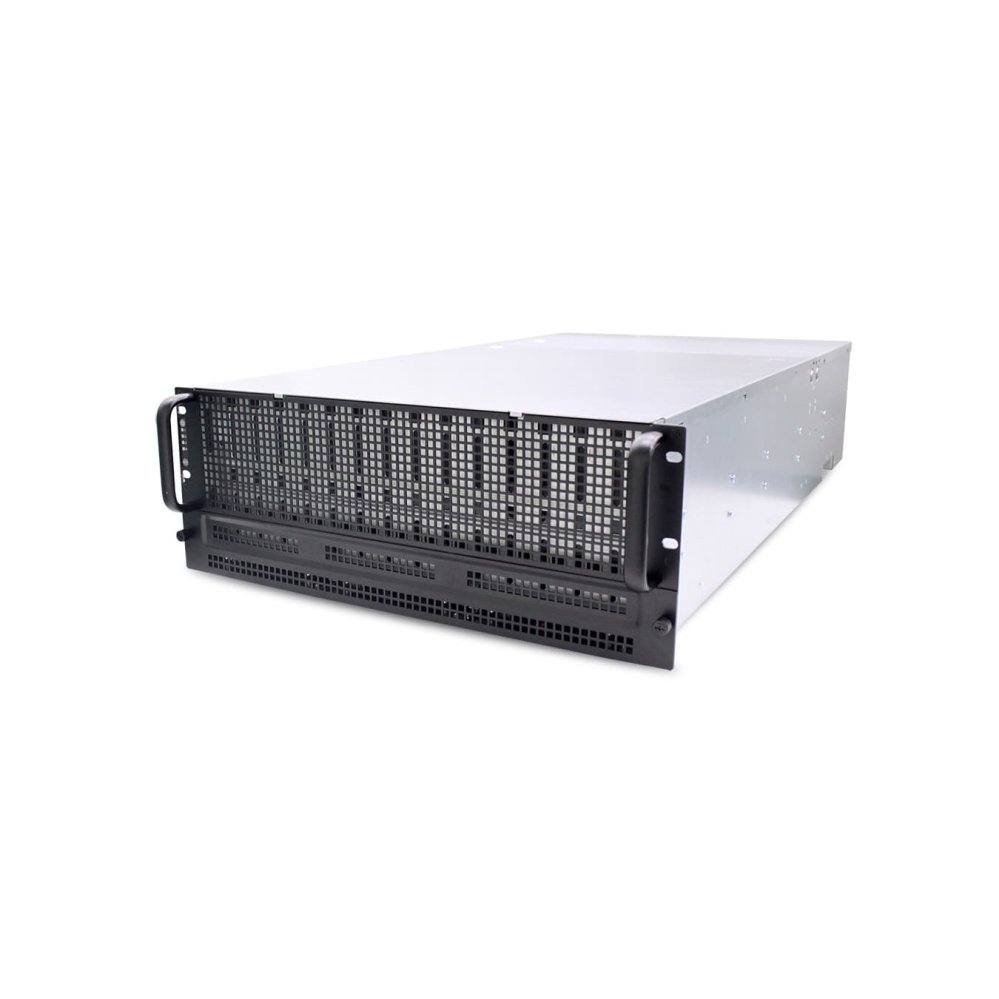

J4060-01, a 4U 60-Bay 12Gb/s SAS JBOD, ideal for high-availability storage and high performance appliance. This 4U 12Gb/s SAS JBOD enclosure with single or dual expanders supports 60 x 3.5” hot swap drives. The optional 2.5” tray allows tiered storage architecture in a single unit taking advantage of the full potential of the SAS3 (12Gb/s).
General
Number of Expander :
2 x External expanders
6 x Internal expanders
Expander Chip : LSI SAS3x36R + LSI SAS3x48
Host/Expansion Interface : 6 x Mini SAS HD (SFF-8644) per expander module
Drives Supported
Drive Interface :
12Gb & 6Gb SAS if using dual expanders
12Gb & 6Gb SAS/SATA if using single expander
Form Factor : 3.5”
Administration / Management
Admin/Firmware Upgrade :
In-band & Serial port interface
IEM port (Optional)
LED Indicators, Audible Alarm : Yes
Hot swap & Redundancy
Drive Bays : 60
Cooling : 4 x 8cm fans
Power Supply : 1400W 1+1 hot swap redundant 80+ Platinum
Power Entry : Dual AC Inlet
Expander Modules : Dual expanders (Optional)
Electrical & Environment
Universal A/C Input : 100~240V AC full range
Operating Environment :
Temperature 0?C to 35?C
Relative humidity 20% to 80%
Non-operating Environment :
Temperature -20?C to 60?C
Relative humidity 10% to 90%
Physical Specification
Dimensions (W x D x H) (with chassis ears) :
mm : 480 x 865.25 x 175.75
inches : 18.9 x 34 x 6.9
Gross Weight (w/ PSU; w/o Rail & Disks) :
kgs : 52.76
lbs : 116.31
Packaging Dimension (W x D x H) :
mm : 603 x 1095 x 408
inches : 23.74 x 43.11 x 16
Mounting :
Standard : Slide rail
Option : Cable management kit
(For North America, 20” tool-less rail is the standard. Adjustable plate is not included.)
