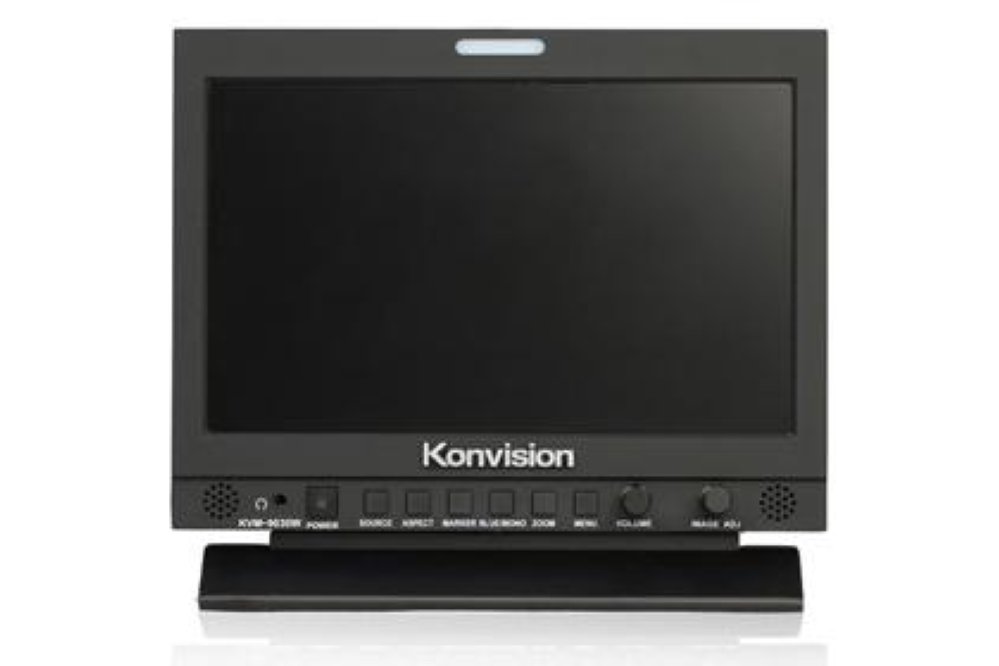

KVM-9030W (with AC-IN)

Полевой монитор со встроенным питанием от постоянного и переменного тока в возможностью прямого подключения к 220В.
Разрешение: 1280x768,
яркость:400cd/m2,
Контрастность: 800:1
Угол обзора: 170/170

2 SDI входа и 1 SDI проходной выход (3G/HD/SD-SDI auto detect) DVI/HDMI/VGA вход, Композитный/Компонентный вход, разъем для наушников, индикатор Tally, аналоговый аудио вход, RS232
Функции: PIP/PBP, Embedded audio, 1:1 pixel-to-pixel mapping, Scan, Fast Mode,Markers, H/V delay, RGB gain и offset setting. etc.



LCDDisplay Size9"High Resolution1280?768Aspect Ratio16:10Wide Viewing Angle170°(H) / 170°(V)Pixel Pitch0.05?0.15(mm)Color Depth16.7MResponse time18msBack LightLEDBrightness400cd/m2Contrast Ratio1000:1 Input2 ? BNCSDI1/2 Channel Input (3G/HD/SD-SDI Auto-Detected)3 ? BNCYPbPr/YCbCr/RGB/Video/ Y/C1 ? DVIDVI/HDMI/VGA InputOutput1 ? BNCSDI Output (3G/HD/SD-SDI Auto-Detected)3 ? BNCYPbPr/YCbCr/RGB/Video/ Y/C Compatible SDI Formats SMPTE-425M1080p?50/59.94/60)SMPTE-274M1080i(60/59.94/50) 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)SMPTE-296M720p(60/59.94/50/30/29.97/25/24/23.98)SMPTE-260M1035i(60/59.94)SMPTE-125M480i(59.94)ITU?R BT.656576i(50)Audio In / OutSDI Audio In8 Channel Embedded AudioAudio Meter Display(VU+PPM)Audio Level Meter DisplayAnalog Audio Input3.5mm Headset Switch CableAudio Headset Output3.5mm Headset JackBuilt-in Speaker2.5W?2GeneralOperating Temperature-10??50?Input VoltageDC12V / AC 100-240V 50/60HzPower Consumption26WPower-Saving ModeTurn off unimportant Key Automatically if No Signal InputUnit/Packing Dimension218?207?77(mm)(mm) / 312x242x26(mm)Net/Gross Weight1.8KG / 2.8KGShell MaterialsAluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-ShellAccessoryPower CordOptionalDV/V-mount/AB battery mount/Magic arm/D-Tap Cable/Carry case/Desktopstand¤specifications may be changed without prior notice.
