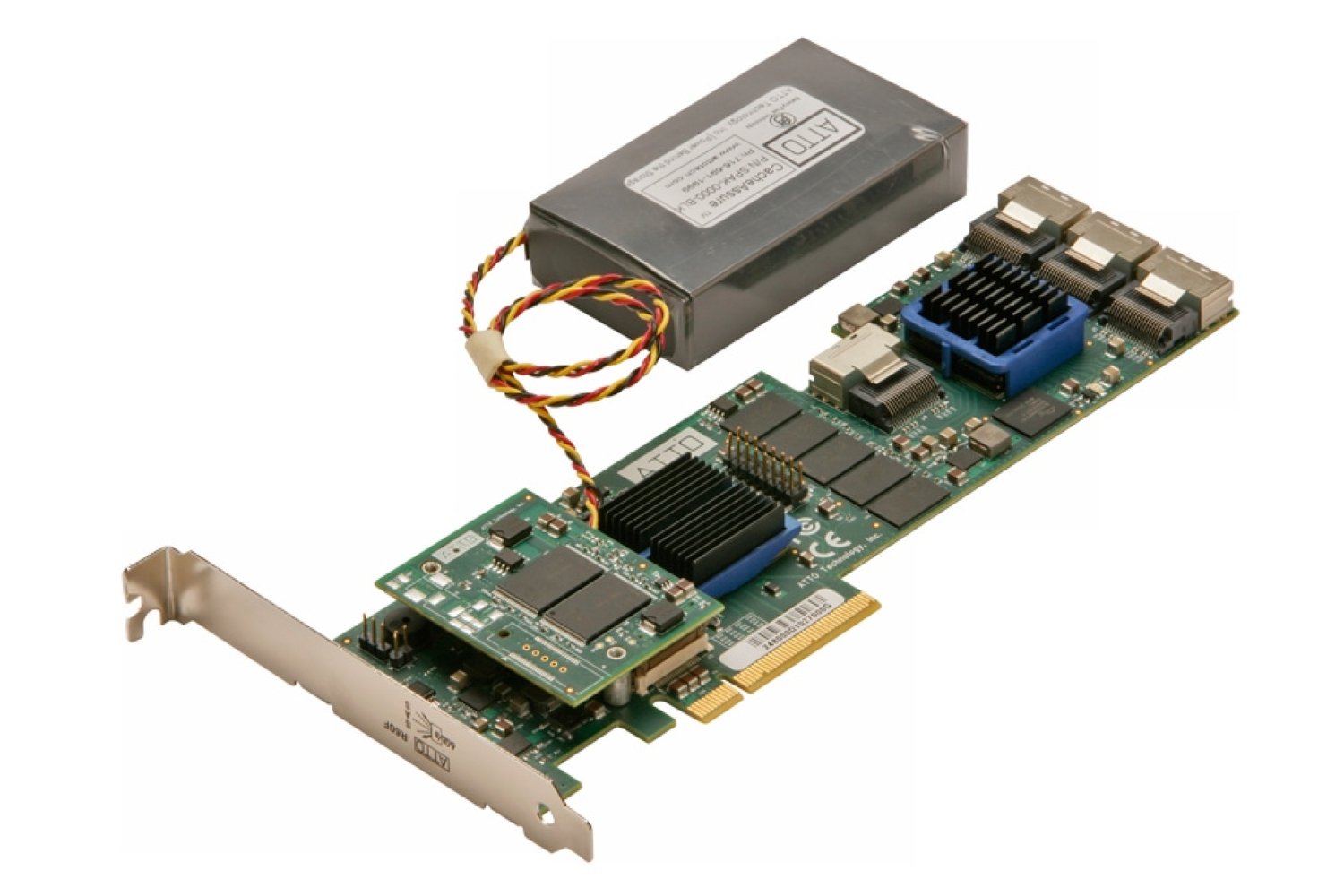

Atto ExpressSAS R60F with CacheAssure

ATTO ExpressSAS® R60F 6Gb/s SAS/SATA RAID Adapters add high-performance RAID protection to direct attached SAS and SATA JBOD storage. Delivering significant advancements in performance and flexibility with enterprise-class features, ExpressSAS® 6Gb/s SAS/SATA RAID adapters provide the industry`s largest ECC protected cache memory in an affordable RAID solution for general IT and media and entertainment environments.

Optional CacheAssure module provides users with data protection against power loss while maintaining high performance.

The ExpressSAS® R60F RAID adapter provides the most flexible and robust 6Gb/s SAS/SATA connectivity to Direct Attached Storage via 16 internal ports. With transfer rates of up to 1200MB/s per port, the R60F is well suited for high-bandwidth workflows, such as digital content creation, streaming video and audio, transactional databases, and email and Web servers.

The R60F combines the industry`s largest ECC-protected cache memory with advanced engineering and innovative features to ensure smooth data transfers and consistent performance. Leveraging ATTO`s market-tested RAID stack and exclusive latency management features, the R60F helps customers create, share and protect data and digital assets more effectively.

• 16 internal ports in a low-profile form factor
• 8x PCIe 2.0 / PCIe 3.0 compatible host connection
• 1GB ECC protected cache memory
• 9.6GB/s throughput in full-duplex mode
• SAS 2.0, SAS, SATA II, SATA connectivity
• Supports RAID Levels 0, 1, 4, 5, 6, 10 50, 60 and DVRAID™, an advanced RAID level for digital video environments
• Advanced Data Streaming (ADS™) Technology
• DriveAssure™ Technology
• CacheAssure™ Technology
• Adaptive Path Optimization available to provide redundancy in storage connections
• Data Recovery Mode for additional data protection
• Supports up to 256 end devices
• Windows®, Linux and Mac® OS X driver support
• Easy-to-use GUI-based configuration utility
• Thunderbolt-aware driver for Mac OS X 10.6.8 & above and Windows 10, 8.1, 8, & 7
• 3-year standard product warranty
