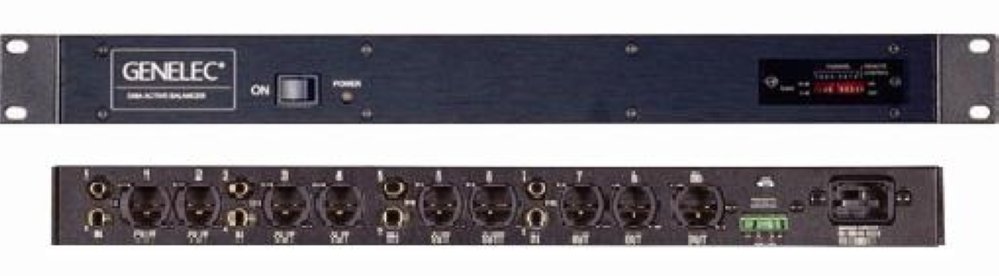

DI8A Активный балансир

Преобразователь несимметричных аудиосигналов в симметричные. 8 каналов Frequency response± 0.5 dB 20Hz-60kHz± 1.5 dB 20Hz-120kHzDynamic Range118 dBMaximum input signal8V rmsNoise< -100 dBuTHD + noise< 0.002%(@ 20 Hz-20kHz, 0dBu)Crosstalk< -90 dBuGain0dB/+6dB (user selectable)Input impedance10k ohms (minimum)Output impedance100 ohms (minimum)Mains voltage230/115VMax power consumption10WMaximum ambient temperature35°C (95°F)Weight4 kg (8,8 lbs)DimensionsHeight43 mm (1 3/4") Width *423 mm (16 10/16") Depth204 mm (8")
